Products Detail
[MS-A,MS-B]Non-insulated flexible ducts
Non-insulated Aluminium Flexible Duct
Description:Non-insulated aluminium flexible air ducts are produced from one or two ;ayer aluminium atrengthened with high tension hard steel spring wire.
Application: Non-insulated aluminium flexible air ducts are specifically produced for heating,cooling,ventilation,exhaust and air-conditioning systems under low and medium pressure.
[MS-C MS-D]Insulated Flexible Duct

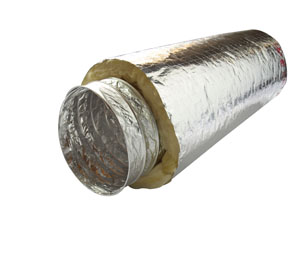

Insulated Flexible Ducts
Description:
Insulated flexible duct made of a thermaflex inner wall, supporting 25mm thick 16kg/m3 fiberglass insulation,sheathed in a reinforced aluminium/polyester laminate jacket acting as a vapour barrier
Application:
Designed for low,medium and high pressure ventilation and air conditoning systems, to help reduce condensation and heat loss.
[MS-K]PVC DUCT
PVC FLEXIBLE DUCT
Applications:
Ideal for vacuum suction of powder, granule and transportation of water and oil in industry, agriculture and construction engineering.
As suction and transport hose suitable for below substance.
[MS-G]COMBINED DUCT
Combined PVC Flexible Duct
Description: COMBIDEC is produced from multi layer aluminium strengthened with high tension steel spring wire, coverd with non-flammable PVC jacket. An important aspect of COMBIDEC is its non-condensation property.
Application: Combined flexible air ducts are specifically produced for heating, cooling, ventilation,air-conditioning, exhaust and dust collection system.
[MS-F]SILICONE DUCT
- Temperature range
-70 °C approx. to +260 °C approx.
short time to +310 °C approx.
- Diameter
from 19 to 254MM
- Length
Usually 4 meter per piece
- Applications
as conductor of hot and cold air.
for exhaust gas technique, engine construction, engine warming, aircraft construction and military construc

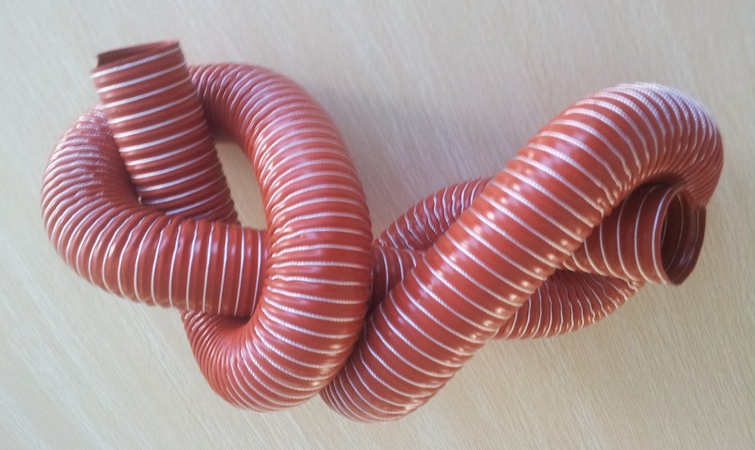

RED SILICONE DUCT
Description:
Single layer Silicone duct is made of one layer silicone coated glass fiber fabric. It is a kind of High temperature duct, flame retardant, chemical resistance, stand for very high temperature. It is also used in different industry. Details as below:
Material:
• Wall: the wall is one layer silicone coated glass fiber fabric
• Spiral: stainless spring steel wire is visible inside, hi-temperature glass fiber cord is spired around the surface of the duct.
Properties:
• The silicone duct has very good heat resistance
• It is leak-proof; kink-proof
• The long life time of this duct is around 5~10 years in normal working condition
• It has smooth interior
• Bending radius is quite small.
• Silicone duct is normally in red & black.color.

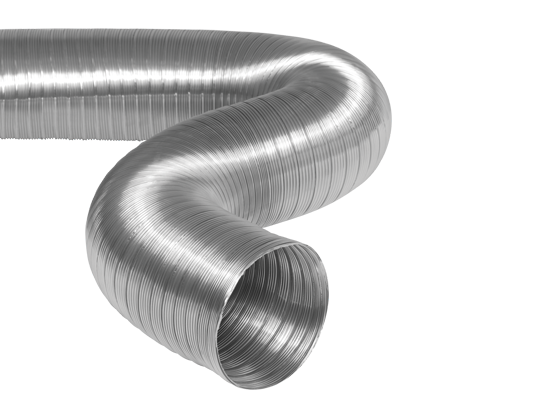

[MS-I]RIGID ALU DUCT
- Diameter
from 50MM to 300MM
- Length
3, 4, 6Meter
SEMI RIGID ALUMINIUM DUCT
Aluminium semi rigid flexible air ducts are flexible,extendable and highly reliable for low and medium pressure air conditioning, ventilation and boiler systems.
Semid rigid duct is elastic, flexible and stretchable.
Oval and circular connectors are easily installed.
SEMIDUCT is secured using an “INTERLOCK” crimp system.
[MS-K]Black PVC Duct Connecgtor
- Base Fabric
Woven Fiberglass
- Coating
Synthetic Rubber
- Thickness
0.5-1mm
- Working Tempetature
-30℃~70℃
- Working Pressure
≥3KPa
- Width
250mm,300mm,350mm,400mm

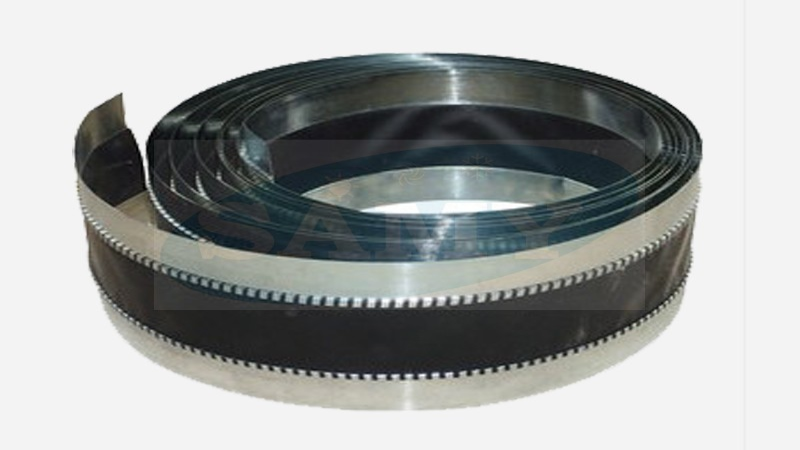

BLACK PVC DUCT CONNECTOR
Description: It consists of a strong, woven faberglass fabric, coated on both sides with a specially compounded synthetic rubber.
Application: It is well suited for flexible connections on ourdoor air handling units and ducts, as well as in medium and high velocity ventilating, air conditioning and heating systems
[MS-J]Red Silicone Connector
- Thickness
1.5mm
- Working Temperature
-70℃~300℃
- Working Pressure
≥10Kpa/p>
- Width
250,300,350,400mm

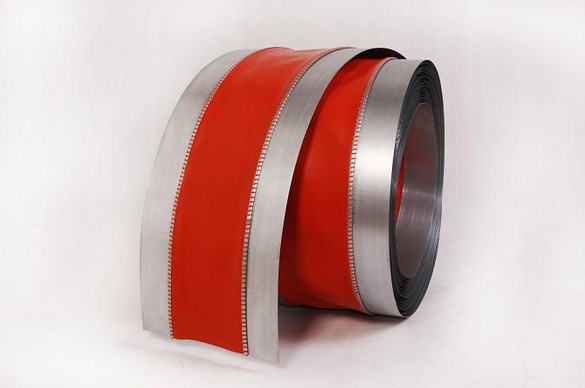

RED SILICONE DUCT CONNECTOR
Description: it's Made of special glass fabric with steel-wire, coated with silicon resin.
With features of anti-ozone and being aging-resistant, it’s suitable for sites under high temperature and high pressure, as well as outdoor environment.
Application: It’s particularly suited to those applications exposed to higher temperatures, or where the risk of fire is concerned.

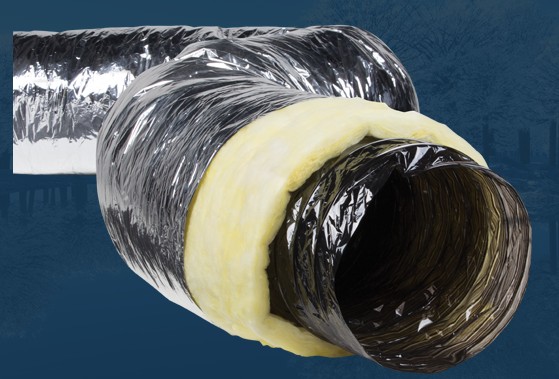

[MS-L]PET INSULATED DUCT
Black PET Insulated Duct
SMOOTH INNER SURFACE
- Minimal pressure loss
- Low operational cost
HIGH TENSION STEEL WIRE
- Highly durable
- Highly resistant to deformation
- Easily installed
GLASS WOOL INSULATION
- Heat resistant (Certified, EN 13501-1, Class A1)
- UL 723, Flame Spread Index = 0, Smoke Developed Index = 0)
- No fiber erosion
- Minimal energy loss
- Perfect insulation property
- Non-condensation property
[MS-AT001]Aluminium tape
- Size
Width:48MM, 50MM,63MM,73MM,75MM,98MM,100MM
- Length
30M, 40M, 50M
- Foil backing
30/40/50 micron
- Adhesive system
Acylic/Rubber
- Peel Adhesion
20-25N/25.4MM
- Rooling Tack
<=20CM
- Temperature Range
-10℃-90℃
Aluminium Tape
Manufactured from aluminium foil with hot melt or acrylic adhesive

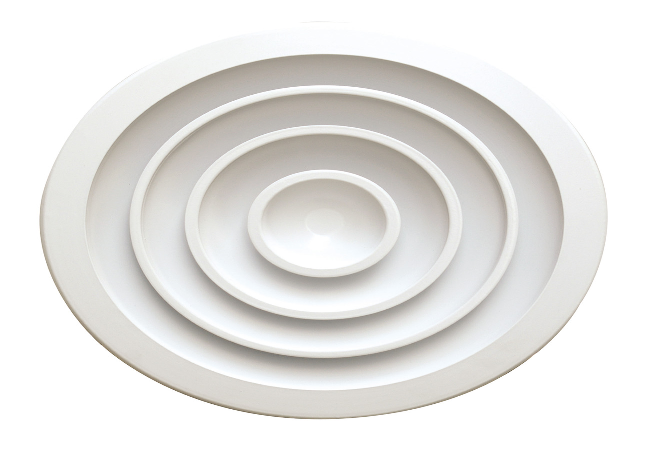

[MS-O]Round Air Diffuser
Round Air Diffuser
Made of Aluminium sheet
Powder-coated or anodized surface finish

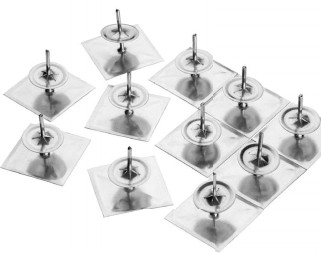

[MS-AT002]Aluminium Pin
- PROPERTIES
ALUMINIUM PIN
Easy to cut, bend and mount
Corrosion free
- REINFORCED GALVANIZED
STEEL BASE
Ensures a flat base
Ensures maximum adherence
- GALVANIZED WASHERS
Easy to fit, impossible to remove
Aluminium Pins
• MS Aluminium pins are designed for fitting insulation materials to smooth surfaces without using
any additional tools.
• Quick and easy application.
• It can be used for fitting rigid or flexible insulation materials such as glass wool, rock wool, polistiren,
polyethylene foam, insulation cork boards, etc.
• Operating temperature range of MS PIN is –10 C / +80 C. Application temperature has to be
above +10 C.
• The surface applied on has to be free of any residues, dust, grease, oil, etc.

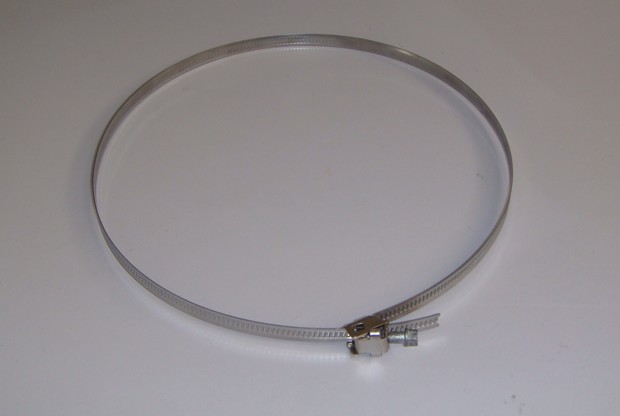

[MS-AT003]Duct Clamp
- NYLON CLAMPS
Dia100MM 400MM*8MM
150mm 600mm*8mm
200mm 800mm*8mm
250mm 1000mm*8mm
- Stainless Steel Clamps
Duct Diameter*Length
102mm*550mm
150mm*650mm
200mm*750mm
250mm*1000mm
300mm*1200mm/p>
400mm*1500mm/p>

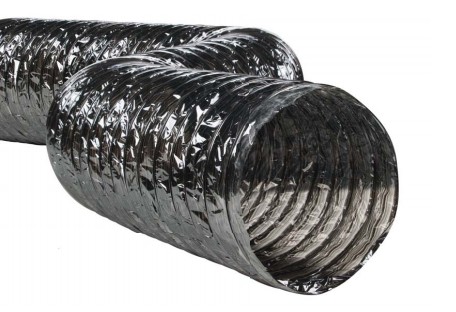

[MS-M]PET NON-INSULATED DUCT
- POLYESTER LAMINATED BODY
High resistance to UV rays
Resistant to chemicals
Maintenance free
- FLEXIBLE & SEAMLESS CONSTRUCTION
Easy to store
Easy to transport
Low installation cost
High resistance to wear and tear
Airtight
Low operation and maintenance costs
- SMOOTH INNER SURFACE
Minimum pressure loss
- HIGH TENSION STEEL WIRE
High durability
High resistance to deformation
Easy to install
POLYMS
POLYMS non-insulated polyester flexible air ducts are specifi cally produced for low and medium
pressure heating, cooling, ventilation and air conditioning systems.
Airtight POLYMS is produced from multi layer polyester, strengthened with high tension hard steel
spring wire.
POLYMS is highly elastic and flexible. It can be easily fi tted to circular or oval connectors.
[MS-N]SQUARE DIFFUSER
- Available at Neck size/Face size
147*147/295*295MM
222*222/370*370MM
297*297/445*445MM
372*372/520*520MM
447*447/595*595MM/p>

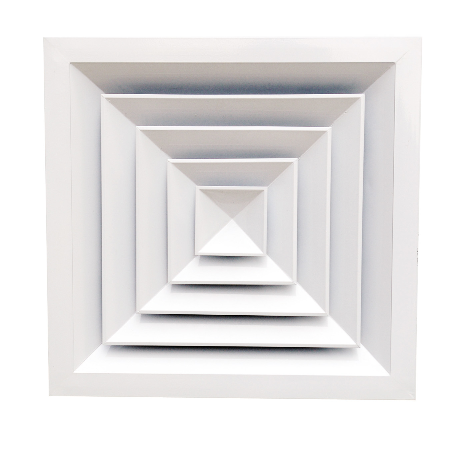

SQUARE DIFFUSERS
The diffuser is used for the supply and exhaust of cooled and heated air system.
Completely in extruded aluminium, satin anodized or power -coated white.
The central core is removable for easy maintenance.
Simple and pleasant apperance.
Accessories: OBD opposite blade damper
