Products Detail

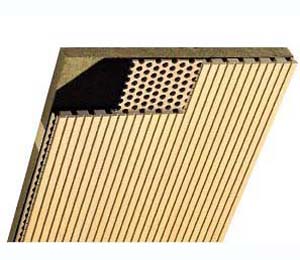

[MS-13/3]Acoustic Grooved Panel
Acoustic Grooved Panel
  • MS-13/3

    For walls, ceilings

  • Perforated Rate

    13%

  • Fireproof

    >B2,B1,A

  • Environment

    E1

  • Structure

    Surface, Groove, Substrate, Rear Hole, Acouloc

  • Surface

    Melamine,Natural Veneer, Gemimi Veneer, Paint

  • Standard Size

    2440*128*15mm, 2440*128*18mm

Master Grooved Sound Absorption Panel adopts high density MDF. It can release interior noise, improve sound quality, and keep the wood decoration visal effect.

• MS-panel is composed by a lot of parallel Helmholts resonators.

• Changing size of narrow gap and rear cacity can control its resonance frequency.

• It can wider the absorptive band 2-3 times OCT by increasing porous sound absorptive material.

• All of MS-panel gap size, hole diameter, hole depth are the result of accurate calculation.

• This is the main reason that MS-panel has better sound absorption from 125Hz-4000Hz.

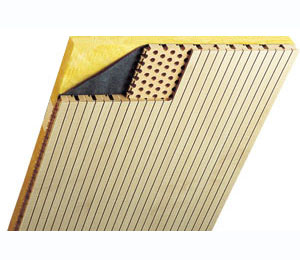

[MS-14/2]Acoustic Grooved Panel
Acoustic Grooved Panel
  • MS-14/2

    For walls, ceilings

  • Perforated Rate

    7.5%

  • Fireproof

    B2,B1,A

  • Environment

    E1

  • Structure

    Surface, Groove, Substrate, Rear Hole, Acouloc

  • Surface

    Melamine,Natural Veneer, Gemimi Veneer, Paint

  • Standard Size

    2440*128*15mm, 2440*128*18mm

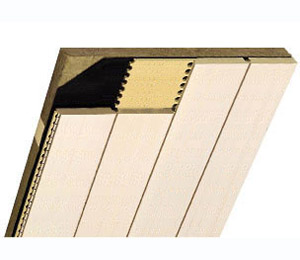

[MS-59/5]Acoustic Grooved Panel
Acoustic Grooved Panel
  • MS-59/5

    For walls, ceilings

  • Perforated Rate

    4.5%

  • Fireproof

    B2,B1,A

  • Environment

    E1

  • Structure

    Surface, Groove, Substrate, Rear Hole, Acouloc

  • Surface

    Melamine,Natural Veneer, Gemimi Veneer, Paint

  • Standard Size

    2440*128*15mm, 2440*128*18mm

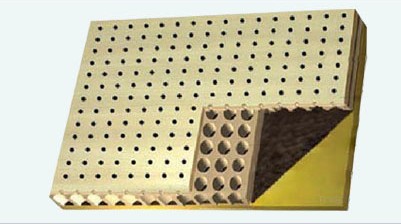

[MS-16/16/6]Acoustic Perforated Panel
Acoustic Perforated Panel
  • Perforated-1

    For walls, ceilings

  • Standard Model

    MS-16/16/6, MS-16/16/8 MS-32/32/6, MS-32/32/8

  • Perforated Rate



  • Fireproof

    B2, B1, A

  • Environment

    E1

  • Structure

    Surface, Substrate, Acouloc

  • Surface

    Melamine,Natural Veneer, Gemimi Veneer, Paint

  • Standard Size

    600×600 1200×600 2400×600 2400×1200

MS Perforative Sound Absorption Panel is a kind of acoustic material with holes perforated on both face and back of the MDF. It offen uses for wall and ceiling decoration.

MS Perforative Sound Absorption Panel provides various perforative mode, making best acoustic result on frequency band.

Tailor modified by consummate technics, make it profoundful artworks and making the most appropriate combination and verve reunification between human being and nature.

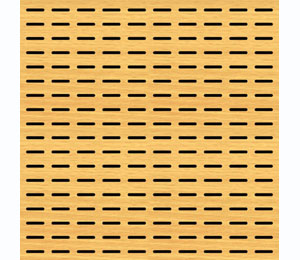

[MS-16/50/6]Slot Panel
Slot Panel
  • Specification

    The standard of perforated wood sound

  • absorption panels are

    600mm×600mm 600mm×1200mm 600mm×2430mm 1200mm×2430mm

  • Thickness

    15mm 18mm

  • Model

    MS-16/50/6, MS-16/50/8,MS-32/50/6,MS-32/50/8

The special hole shape of MS Slotting Acoustic Panel make people refreshing.

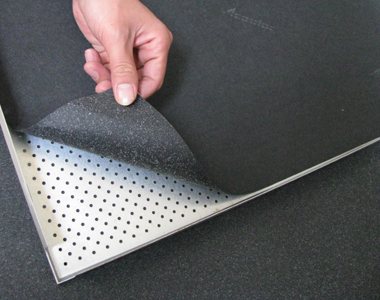

[MS-AF11]Acoustic FABRICS
PET INSULATED DUCT
  • Standard size

    1.2M Width*300M Length

  • Sound absorption performance is far superior to imported products ;

  • Tested and well documented according to EN ISO 354, NRC ≥ 0.75, ;

  • Classified B-s1,d0 according to EN ISO 13501-1;

  • Environmental protection

    formaldehyde-free, no heavy metal material;

  • Adhesive

    hot melt adhesive products for industrial assembly line homework

Description:

It does not contain any injurious ingredients such as asbestos and fiberglass,

It can be widely used on all kinds of perforated ceiling panels to improve the acoustic performance, such as aluminium ceilings panel, wooden panel and so on.

Acoustic nonwovens has the best air flow block and sound absoption.



Technology Parameters Table

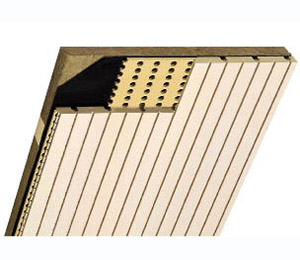

[MS-28/4]Acoustic Grooved Panel
Acoustic Grooved Panel
  • MS-28/4

    For walls, ceilings

  • Perforated Rate

    7%

  • Fireproof

    B2,B1,A

  • Environment

    E1

  • Structure

    Surface, Groove, Substrate, Rear Hole, Acouloc

  • Surface

    Melamine,Natural Veneer, Gemimi Veneer, Paint

  • Standard Size

    2440*128*15mm,

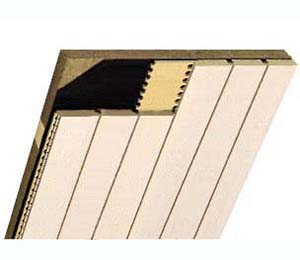

[MS-40/3]Acoustic Grooved Panel
Acoustic Grooved Panel
  • MS-40/3

    For walls, ceilings

  • Perforated Rate

    4.7%

  • Fireproof

    B2,B1,A

  • Environment

    E1

  • Structure

    Surface, Groove, Substrate, Rear Hole, Acouloc

  • Surface

    Melamine,Natural Veneer, Gemimi Veneer, Paint

  • Standard Size

    2440*128*15mm

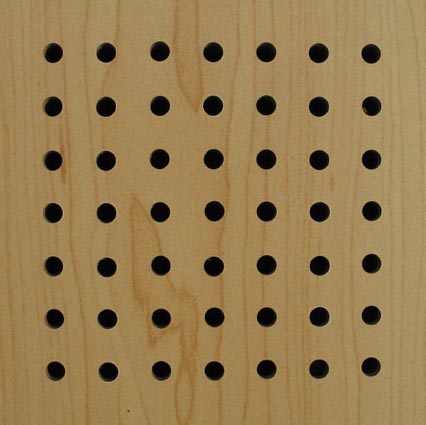

[MS-16/16/12-3]Acoustic Perforated Panel
Acoustic Perforated Panel
  • Perforated rate

    2.76% 、 7.67%

  • Fire rate

    B1、B2、A

  • Environment

    E1

  • Surface

    Melamine,Natural Veneer, Gemimi Veneer, Paint

  • Acoustic fabric

    Acouloc

Standard models：

Standard models

Thickness(mm)

PT-16/16/12-3

PT-16/16/10-3

PT-32/32/12-3

PT-32/32/10-3

15

PT-16/16/12-3

PT-16/16/10-3

PT-32/32/12-3

PT-32/32/10-3

18

Size(mm)

600×600   1200×600  2400×600   2400×1200

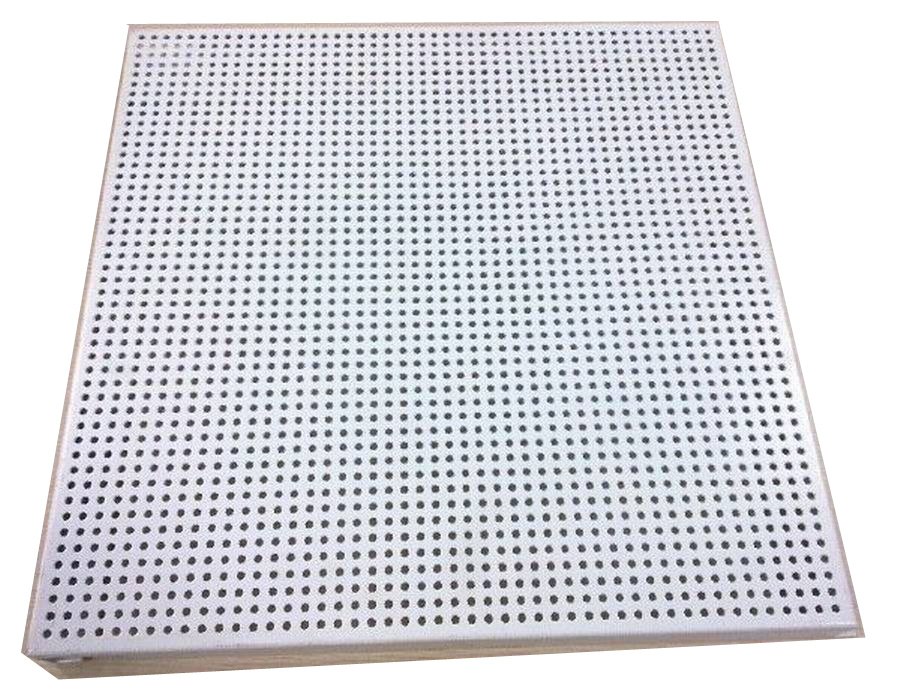

[MS-ALP]Aluminium Ceiling Panel
Aluminium Ceiling Panel
  • Standard size

    600*600*18mm

  • Surface

    Paint

ALUMINIUM CEILING PANEL

MS Aluminum Perforated Sound Absorption Panel was made by variety hole shape of aluminum perforated panel and sound absorption fiberglass board. Its novel aluminum perforated design and sound absorption performance provide aluminum ceiling more usage. It is very suitable for the public area strict with fireproof, dampproof, insulation sound absorption, such as multi-function room, theatre, TV station, broadcast station, laboratory, conference room, making common ceiling have additional sound absorption performance. We can provide different colour, hole shape, row, size and thickness sound absorber according to customer’s requirement.

[MS-1D]ACOUSTIC DIFFUSER
ACOUSTIC DIFFUSER
  • Surface

    Melamine, Natural Veneer, Gemini Veneer, Paint

  • Standard size

    600*600*150mm

  • Performance

    Can satisfy reflection requirement in big area and little absorption

Plane Reflection Defect
If a man listens music in a rectangular hall with flat sidewall, the sound he hears is crisp, hard or harsh. This phenomenon is called frequency coloration effect.

QRD Diffuser
QRD diffuser is an irregular graphic design, the aim is to create diffusion in the reflection, the early sound generated is very rich and mellow. The reverberatrion seems from many direction — from side, top and front to audience. It could obviously improve the sound quality in the hall.

Diffusion Theory
QRD diffuser is formed by a serious of algae with paralleled arrange changeable depth. When sound wave incident at 135°to the horizontal placed QRD, it could reflect sound with same power between 30°to 50°.

Absorption
Different QRD reflector is designed based on different wood has different absorption character. We can offer diffuser with diffusion and absorption coefficient ordered by customers.

Single QRD 750*800*310mm(thickness)
Test rate 1:1    Sound resourse to QRD is 10m, receiving point to QRD is 5m.

QRD 600*1200*310mm
Total 14pcs QRD are layed at the center of reverberation room floor. Total area is 10.1m2.

[MS-2D]ACOUSTIC DIFFUSER
ACOUSTIC DIFFUSER
  • Surface

    Melamine, Natural Veneer, Gemini Veneer, Paint

  • Standard size

    600*600*150mm 1200×600×150mm

  • Performance

    With double diffusive function of 1D QRD

  • Diffusing Coefficient

    Test Scale 1:1, Distance between acoustic sound source and QRD 10m, Distance between receiving point and QRD 5m.

The QRD® 734 has proven to be the ideal choice in the project application for music education facility, recording studio, church, auditoriums, theatres and multi-function room, because of its wide bandwidth, low cost, and broad selection of decorative surface. But QRD734 still has the problem of over absorb on low frequency.



Solution:After deeper research, Getech found QRD734 is a very good low frequency absorber. If you change wooden grid board to fiberglass with good absorption in middle and high frequency, it can make a perfect wide frequency absorber, balanced absorbing from low frequency to high frequency.

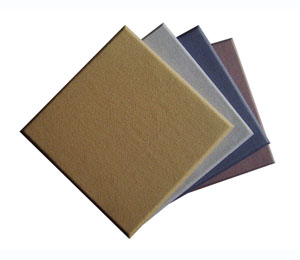

[MS-FP]FABRIC PANEL
FABRIC PANEL
  • Structure

    300kgs/m3 fiberglass+80kgs/m3 fiberglass+Frame+Decorative Cloth

  • Surface

    Decorative Cloth, Artificial Grass, Decorative Leather

  • Edge details

    Rectangular, Sector, Bevel, Semi-bevel, Round

  • Frame details

    Wood, Metal

  • NRC

    0.99

  • Standard size

    600*600*25mm, 600*1200*25mm

  • Performance

    Can be used in all places needed sound absorption

FABRIC PANEL

There are many kinds of Colour and pattern available for Partt Fabric Panel choice. It also could be accepted for customer’s decorative fabric. We could adjust decorative fabric and frame material according to acoustic fitment or owner’s requirement. Wooden, plastic, and metal frame are available for choice. They have unique structure and best installation effect. These flexible arrange provide designer more space for choice.

The decorative fabric of Partt Fabric Panel is fire-retardant treated, reaching China National GB8624-Non flaming B1 standard. It greatly affects all of low, mid and high frequency, NRC≥0.95, has characteristics of non-flaming, fire-resistant, non dust pollution, high decorative, easy to install etc.

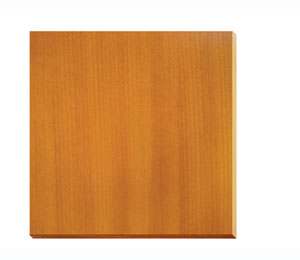

[MS-FP1]FLAT PANEL
FLAT PANEL
  • FlatPanel

    For walls, ceilings

  • Fireproof

    B1

  • Environment

    E1

  • Structure

    Surface, Substrate, Balance material

  • Surface

    Melamine, Natural Veneer, Gemini Veneer, Paint

  • Surface

    Paint

  • Standard Size

    600mm×600mm 1200mm×600mm 1200mm×1200mm 2430mm×600mm 2430mm×1200mm

FLAT PANEL



MS Mounted Fire-retardant Decorative Panel was made by fire-retardant MDF with lamination and process to different size and shape. It not only substrate but also the board after lamination, machining and painting can reach China national GB8624-Non flaming B1 Grade for its unique point. It can be made to different decorative surface, colour, size, thickness and shape. It can show more individuality on interior decoration by its fire-retardant, damproof, environmental protectional priority.
